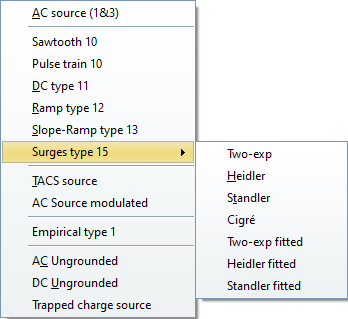

The popup menu under Sources contains the following items:
|
Selection |
Object name |
Icon |
ATP card |
Description |
AC source (1&3) |
ACSOURCE |
|
SOURCE type 14 |
AC source. Voltage or current. Single or 3-phase. Ungrounded or grounded. Phase voltage and rms scaling. |
DC type 11 |
DC1PH |
|
SOURCE type 11 |
DC step source. Voltage or current. |
Ramp type 12 |
RAMP |
|
SOURCE type 12 |
Ramp source. Voltage or current. |
Slope-Ramp type 13 |
SLOPE_RA |
|
SOURCE type 13 |
Two-slope ramp source. Voltage or current. |
Surge type 15 |
SURGE |
|
SOURCE type 15 |
Double exponential source Type-15. Voltage or current. |
Heidler type 15 |
HEIDLER |
|
SOURCE type 15 |
Heidler type source. Voltage or current. |
Standler |
STANDLER |
|
SOURCE type 15 |
Standler type source. Voltage or current. |
Cigre |
CIGRE |
|
SOURCE type 15 |
Cigre type source. Voltage or current. |
TACS source |
TACSSOUR |
|
SOURCE type 60 |
TACS/MODELS controlled source. Voltage or current. |
AC Source modul. |
ACSRCMOD |
|
SOURCE type 14+17 |
Same as ACSOURCE, but with additional TACS input as multiplication factor. |
Empirical type1 |
SOUR_1 |
|
SOURCE type 1 |
Source with user defined time characteristic. Voltage or current. |
AC Ungrounded |
AC1PHUG |
|
SOURCE type 14+18 |
Ungrounded AC source. Voltage only. |
DC Ungrounded |
DC1PHUG |
|
SOURCE type 11+18 |
Ungrounded DC source. Voltage only. |
Trapped charge |
TRAPCHRG |
|
SOURCE Type 14 |
Special quasi DC voltage source disconnected at t=0. |
